HX50
Technical Details
HX50
Dimensions

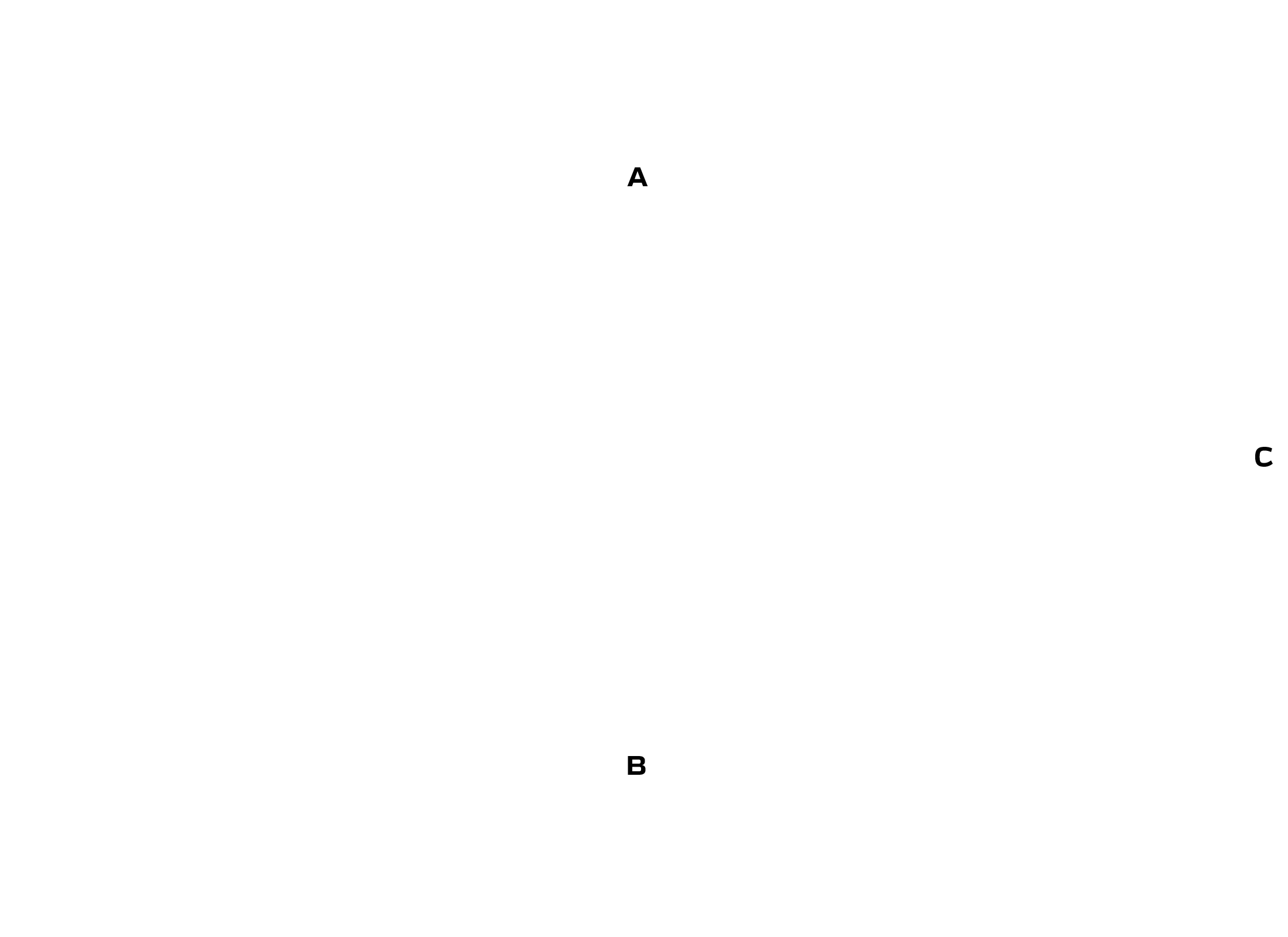

Side

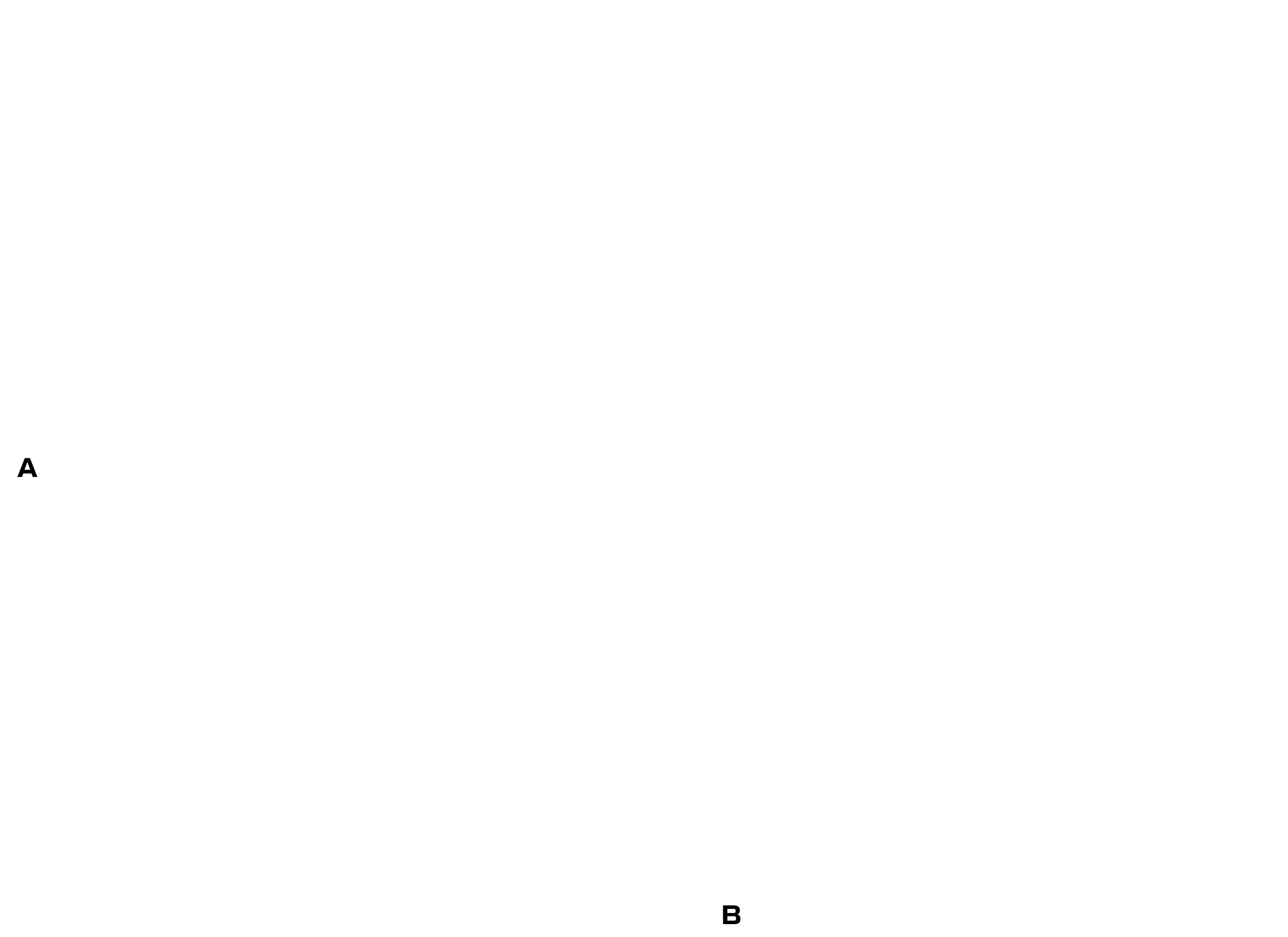

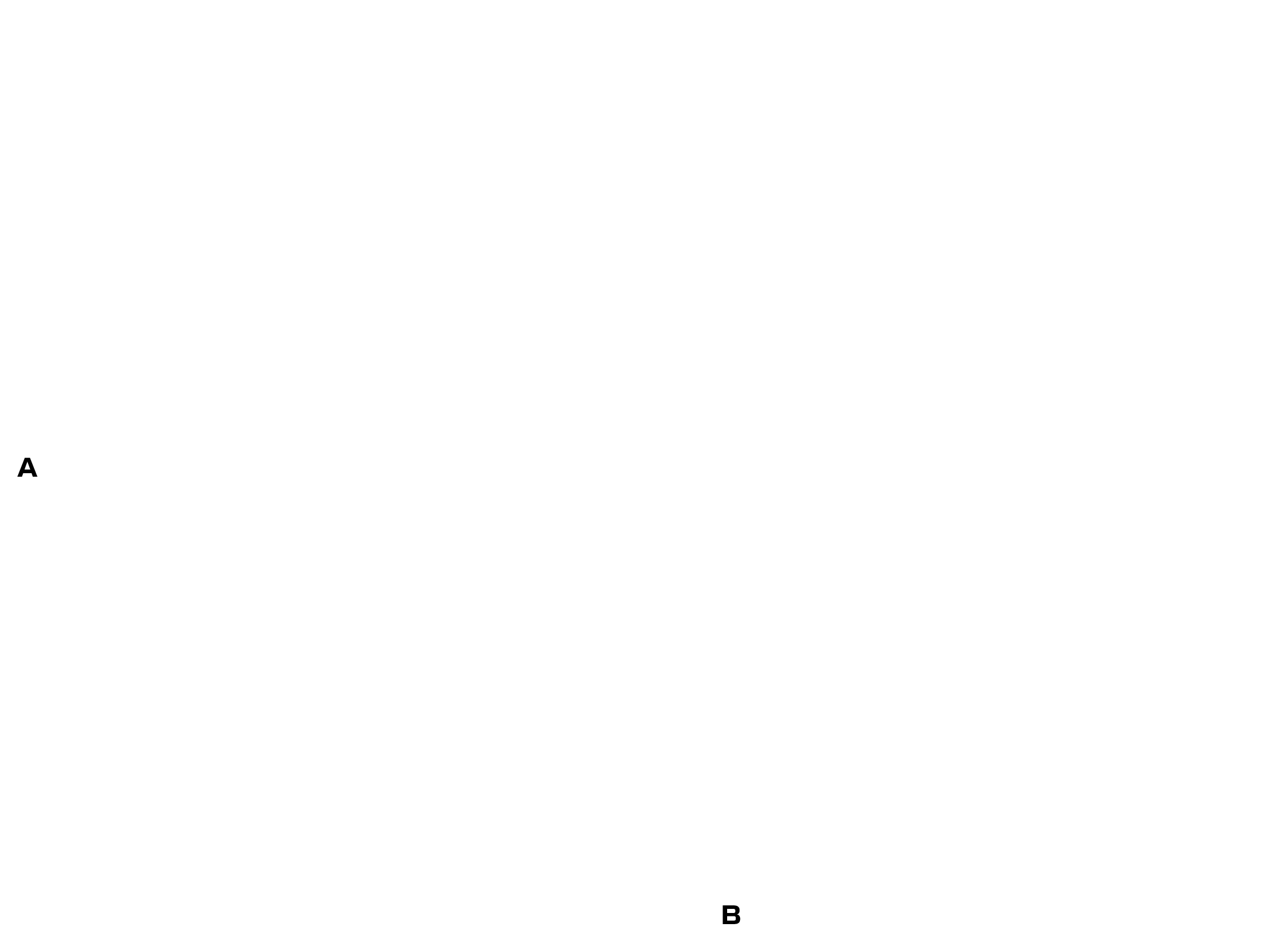

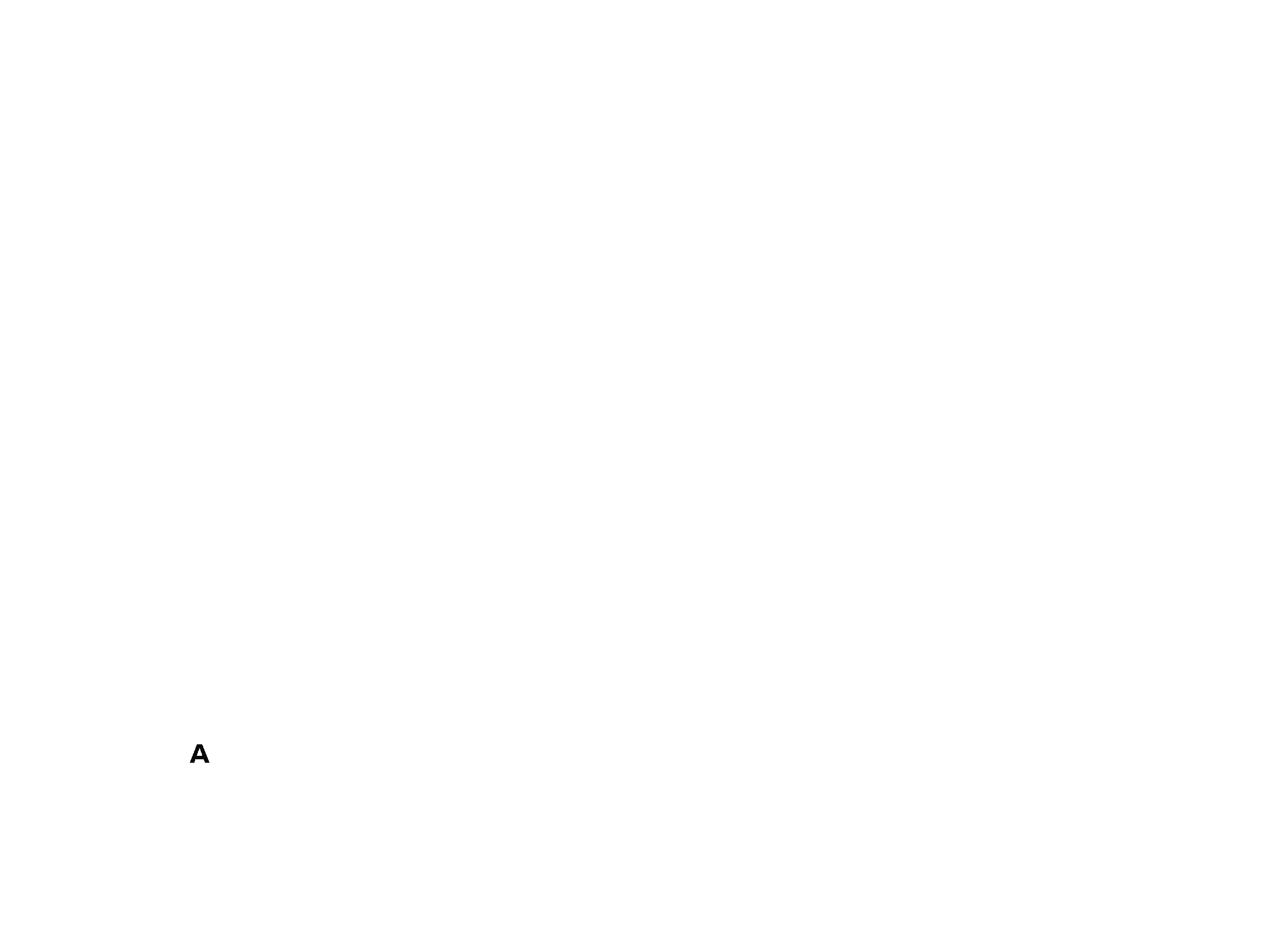

Top A

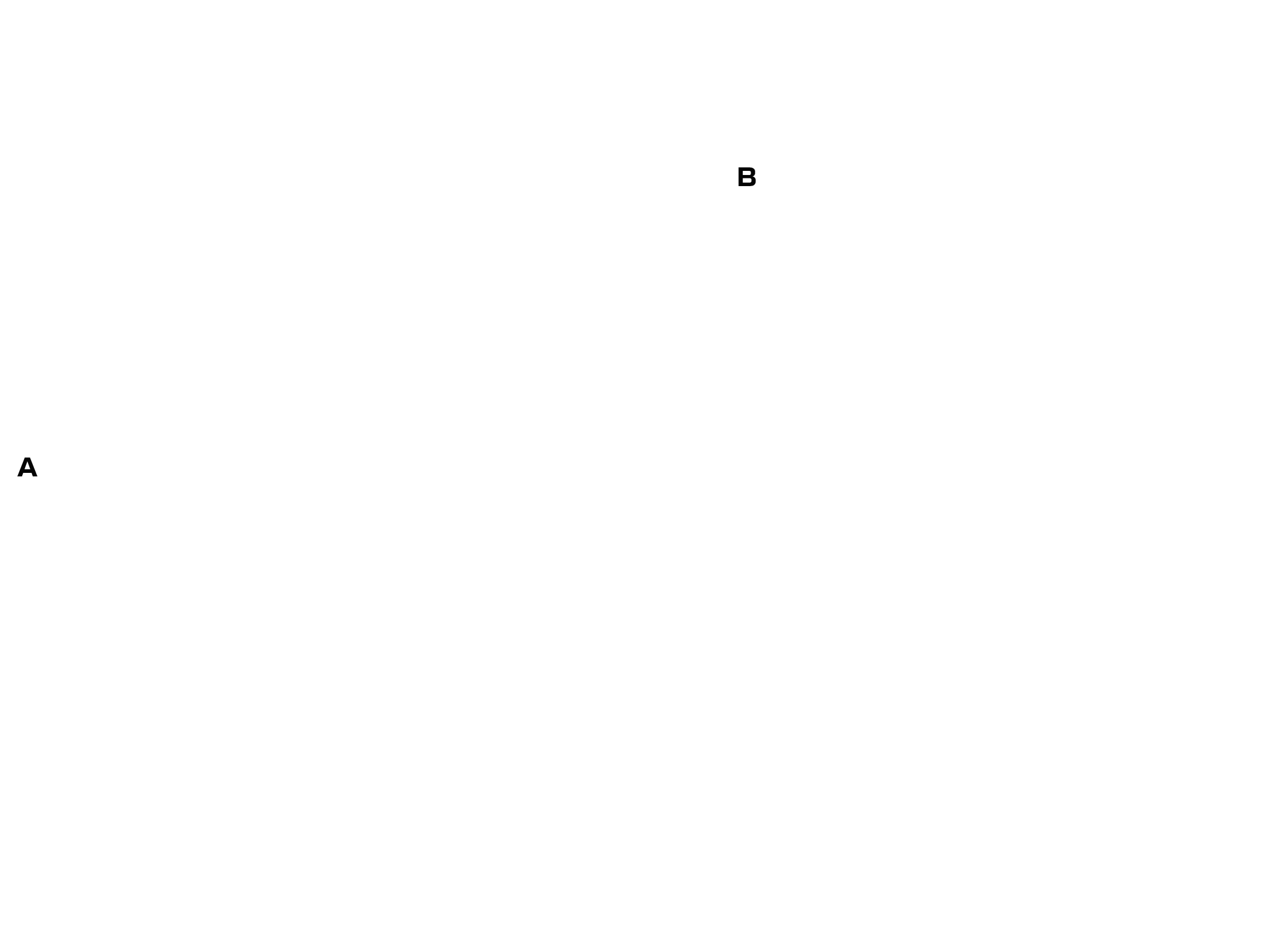

Top B

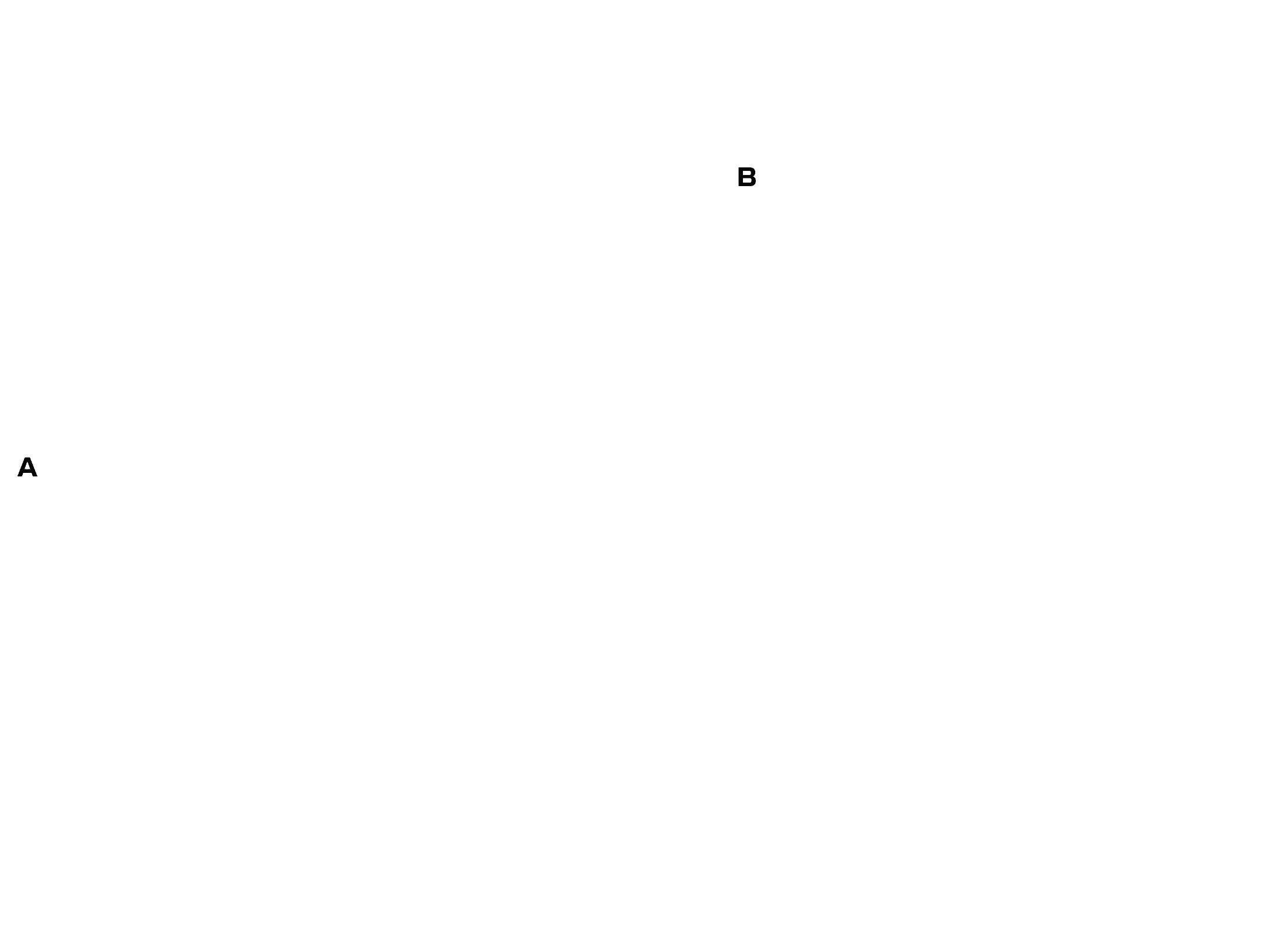

Top C

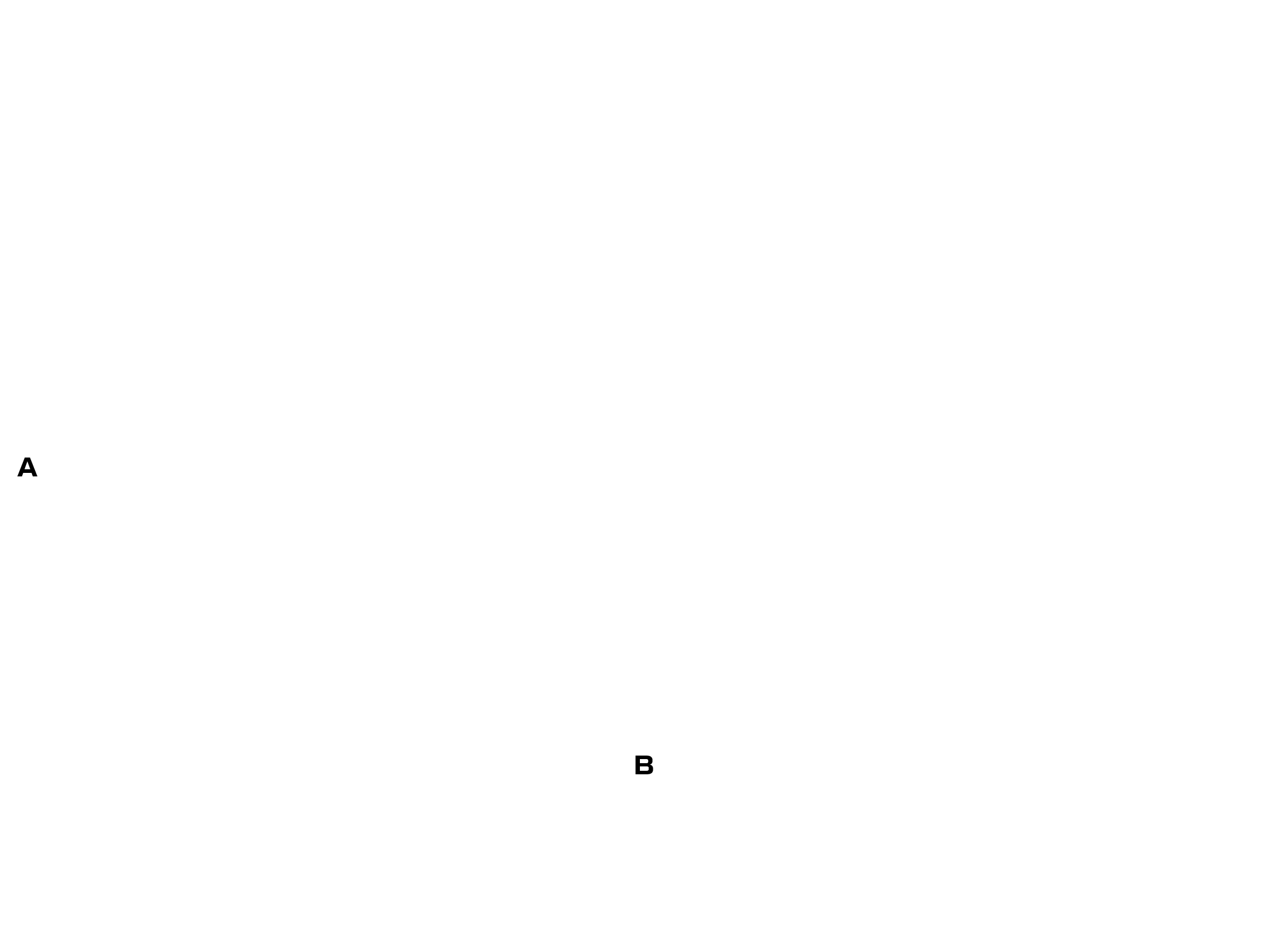

Front

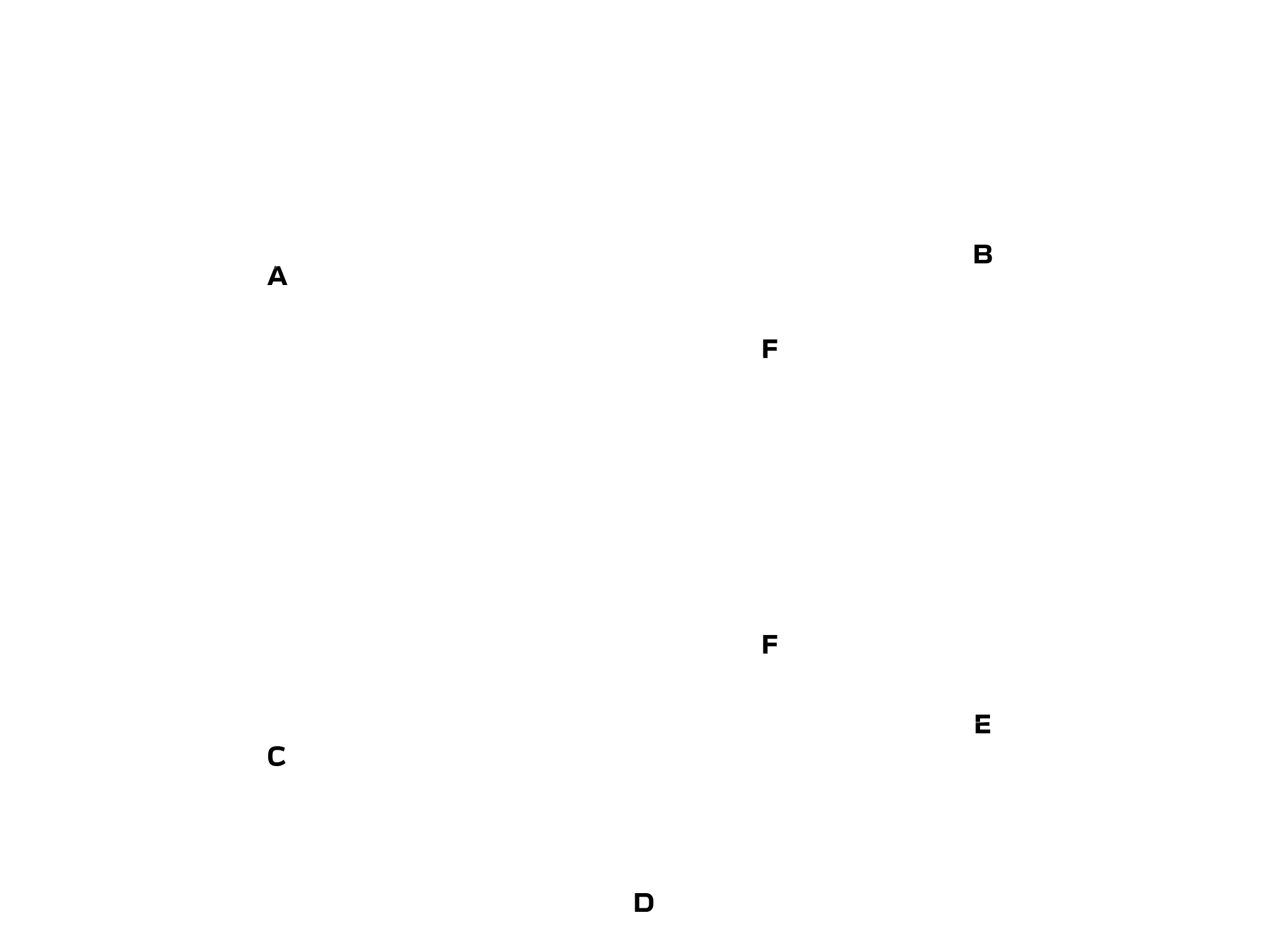

Luggage
Length
463.4 ″
11,770 mm
Body Length
386.6 ″
9,820 mm
Height
129.5 ″
3,290 mm
Width
342.5 ″
8,700 mm
Length
463.4 ″
11,770 mm
Width
342,5 ″
8,700 mm
Length
386.6 ″
9,820 mm
Body Width
102.4 ″
2,600 mm
Body Length
386.6 ″
9,820 mm
Height
129.5 ″
3,290 mm
Body Width
102.4 ″
2,600 mm
Max Width
50.0 ″
1,270 mm
Min Width
19.7 ″
500 mm
Max Height
21.5 ″
545 mm
Length
63.8 ″
1,620 mm
Min Height
14.4 ″
365 mm
Total Volume
24.7 ft
3
0.7 m
3
GT50
Engine specs
Maximum Continuous Power
400 hp
Take-Off Power (5mins)
440 hp (up to 10.000 ft, ISA +15°C)
Emergency Power (30s)
500 hp
Fuel Consumption (MCP)
35 US gallons per hour
Fuel Type
Jet A1 (Alternatives to be announced soon)
Cruise speed
140 kts
Max range
700 nm
TBO
5,000 hours or 20,000 cycles, on condition.
Control
Hill FADEC (Dual channel, with manual reversion)
Management
Fully integrated with Hill Digital Cockpit
Weight
100 kg / 220 lbs
Payload
1760 lbs
